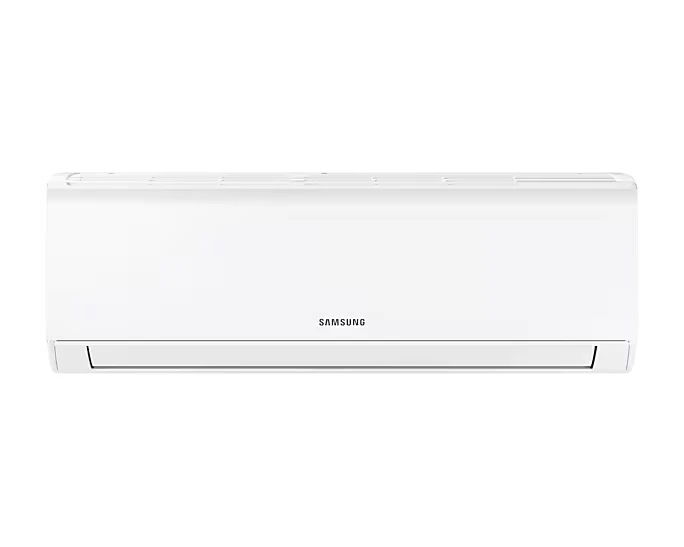

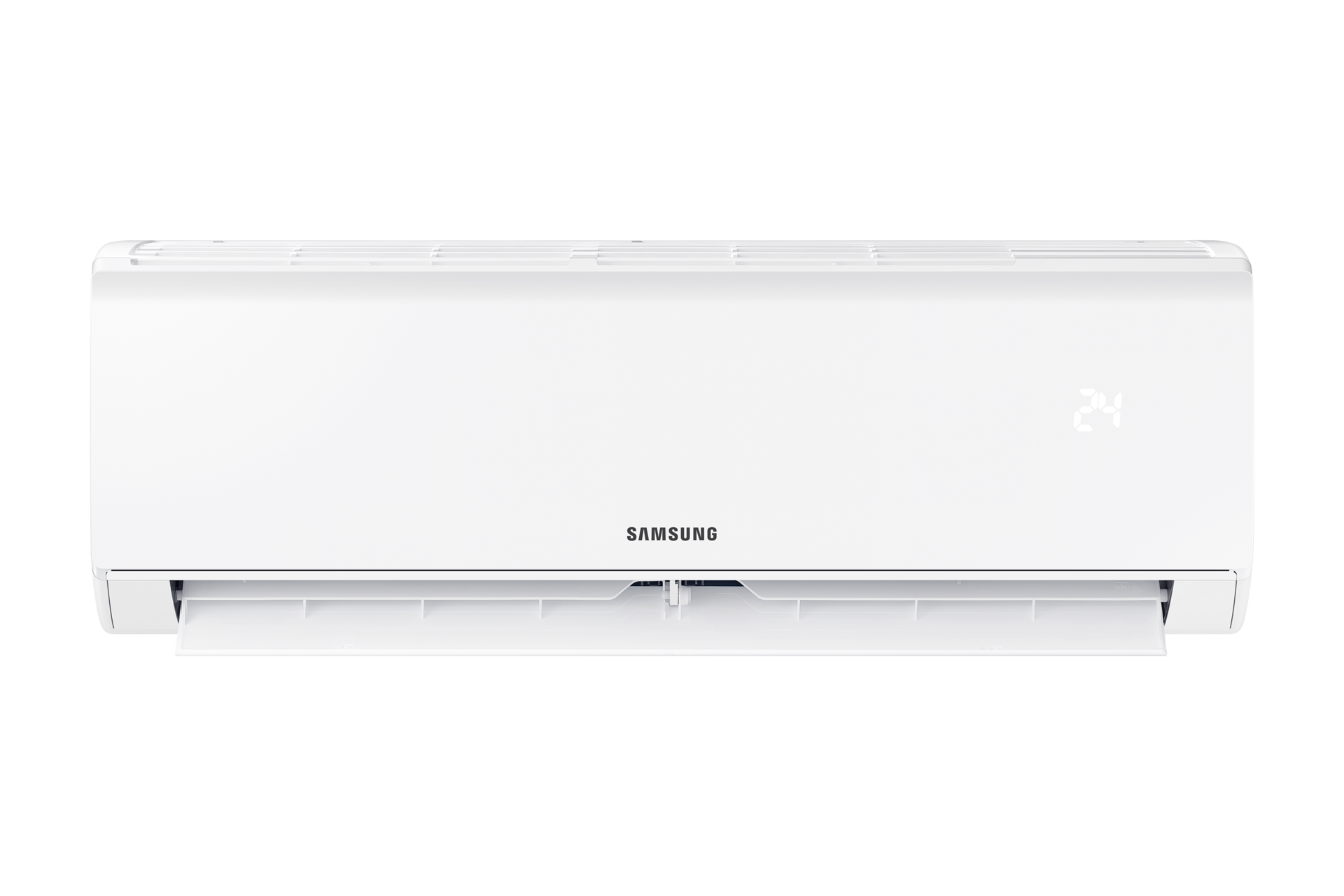

Wall-mount AC with Fast Cooling (AR12TRHGAWK)

AR12TRHGAWK/AF

Next

Choose your Capacity

• 9,000 BTU/h

• 12,000 BTU/h

• 18,000 BTU/h

• 24,000 BTU/h

Wall-mount AC with Fast Cooling (AR12TRHGAWK)

12,000 BTU/h

Where to buy

Features

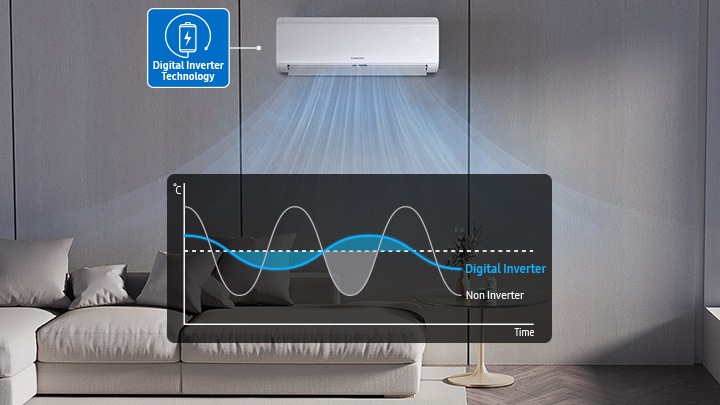

Reduces energy use

Energy Saving

Save money every day with digital inverter technology. It maintains the desired temperature without frequently turning off and on, so there’s less fluctuation. And it uses strong magnets and a Muffler, so it is quieter, lasts much longer and reduces energy consumption.

Cools you faster

Fast Cooling

Cool a whole room rapidly and effectively. Fast Cooling mode operates with the fastest fan speed, before slowing down. So it cools or heats much faster compared to the normal mode* and reaches the desired temperature in the shortest time. It’s ideal for immediate relief from the heat outside.

Breathe purer air

HD Filter

Make sure that the air you breathe is always clean and fresh. The HD Filter is really effective at capturing dust, airborne contaminants and allergens, such as pollen, mold spores and pet dander. And it’s also washable, so all you need to do is give it a quick rinse in water and then reuse it.

Enjoy a good sleep

Good Sleep

Enjoy a great night’s sleep – every night! Good Sleep mode automatically controls and fine-tunes the temperature to create the ideal conditions for each stage of the sleep cycle. So you gain precious minutes of sleep and feel fully refreshed. And it also uses less energy than normal cooling.

Cools every corner

2-Way Auto Swing

Create a comfortable environment with an even temperature in every corner. The 2-Way Auto Swing function automatically controls the air flow direction, so it’s quickly and evenly distributed across the room. It can expel cool or warm air further and in every direction to ensure maximum comfort.

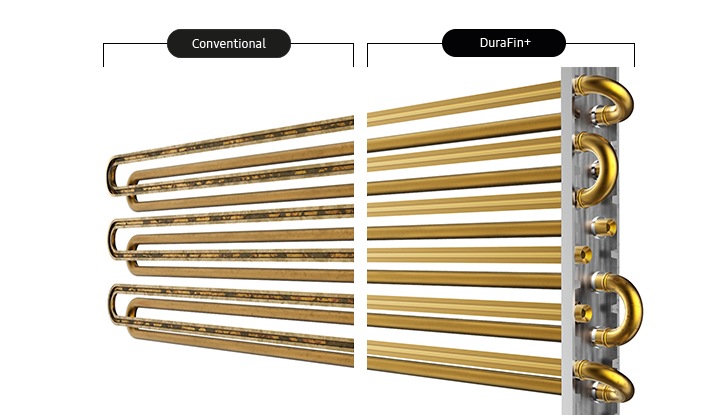

Long-lasting cooling

DuraFin+

Stay comfortably cool for much longer. The DuraFin+ is made of corrosion-resistant material to protect the condenser from rusting, which helps to maintain the optimal performance of the Heat Exchanger. Its superb corrosion-resistance was proven using the Salt Spray Test (SST) for 480 hours*.

* Tested on the AR12TXFCAWKNEU, AR13TYHYAWKNST model.

Specifications

Collapse all

Capacity

• Capacity (Cooling, Btu/hr)

  10748‎

• Capacity (Cooling, kW)

  3.15‎

Energy Efficiency

• EER (Cooling, W/W)

  3.08‎

• EER (Cooling, Btu/hW)

  10.51‎

Noise Level

• Noise Level (Indoor, High/Low, dBA)

  39 / 28.5‎

• Noise Level (Outdoor, High/Low, dBA)

  53‎

Electrical Data

• Power Source(Φ/V/Hz)

  1 / 220~240 / 50

• Power Consumption(Cooling, W)

  1023‎

• Operating Current(Cooling, A)

  4.6‎

Physical specification

• Gross Dimension (Indoor, WxHxD, ㎜*㎜*㎜)

  921 × 281 × 379‎

• Gross Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)

  823 × 595 × 358‎

• Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜)

  845 × 289 × 209‎

• Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)

  782 × 540 × 320‎

• Gross Weight (Indoor, kg)

  12.5‎

• Gross Weight (Outdoor, kg)

  30.0‎

• Net Weight (Indoor, kg)

  10.5‎

• Net Weight (Outdoor, kg)

  27.5‎

• Loading Quantity (20/40/40Hft with Pipe)

  105 / 212 / 245

Technical Information

• Piping Length (Max, m)

  20‎

• Piping Height (Max, m)

  10‎

• SVC Valve (Liquid (ODxL))

  φ6

• SVC Valve (Gas (ODxL))

  φ12

• Moisture Removal (l/hr)

  1.40‎

• Air Circulation (Cooling, ㎥/min)

  650‎

• Refrigerant (Type)

  R410A

• Low Ambient (Cooling, ℃)

  18 ~ 48‎

Air Flow

• Air Direction Control (Up/Down)

  Auto

• Air Direction Control (Left/Right)

  Manual

• Air Flow Control Step (Cool/Fan)

  3 Step

Convenience

• Indoor Temp. Display

  Yes

• Display On/Off

  Yes

• 24-Hour Timer

  Yes

• Auto Restart

  Yes

Operating Mode

• Fast Cool

  Yes

• Good Sleep

  Yes

• Dehumidification

  Yes

• Fan Mode
