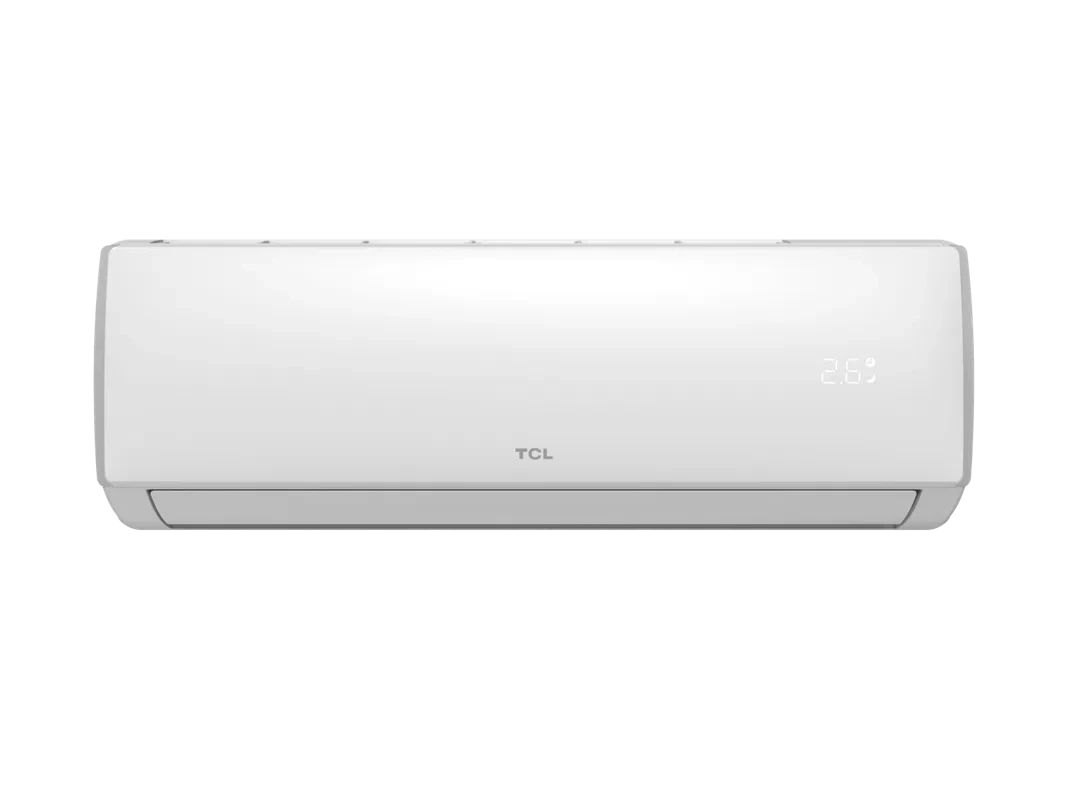

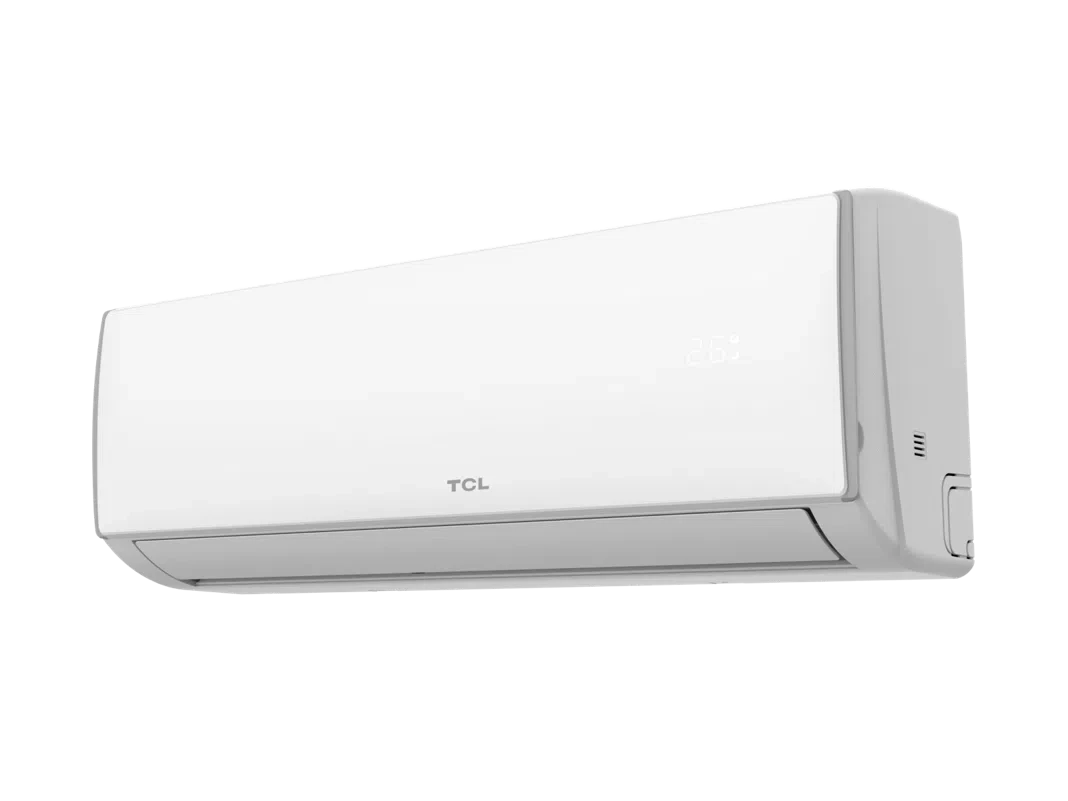

TCL AIR CONDITIONER, ELITE-ON/OFF SPLIT NON-INVERTER AC, NO KIT. model: TAC 09/C

(0) 0 Reviews 0 Orders 0 Wish listed

₦329,800.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

Turbo Cooling&Heating
· Low Noise
· 4-Step Auto Clean
· Extreme Cooling.
SPECIFICATIONS
TAC-09CHSA/XA73I
Rated Heating Performance - COP (W/W)3.06

Rated Cooling Performance - Capacity (W)2635(600~2800)

Rated Cooling Performance - EER (W/W)2.92

Rated Cooling Performance - Max current (A)9.0

Rated Heating Performance - Rated current (A)3.9(1.4~9.0)

RefrigerantR410A / 0.48kg

Indoor noise level (dB(A))41

Indoor air flow (Hi) (m3/h)450

Power supply (Ph-V-Hz)1Ph-220-240V~50Hz

Indoor unit - Net/Gross weight (Kg)6.5 / 8.5

Outdoor unit - Packing(W*D*H) (mm)765×310×481

Refrigerant piping - Max. refrigerant pipe length (m)15

Outdoor unit - Net/Gross weight (Kg)20 / 24

Ambient temperature (℃)-15~50

Pressure - High(DP) (MPa)4.5

Connecting Wiring (Size x Core number)1.0mm² X 4

Refrigerant piping - Liquid side/ Gas side (mm(inch))φ6(7/16")/φ9.52(5/8")

Outdoor unit - Dimension(W*D*H) (mm)660×230x456

Rated Heating Performance - Max power Input (W)1200

Voltage Range (V)155~265

Compressor (Model)35W2ALLB9F#MC

Rated Cooling Performance - Max power Input (W)1300

Qty 40'HQ355

Moisture removal (Liters/h)1.0

Compressor (Type)Rotary

Indoor unit - Dimension(W*D*H) (mm)698×190×255

Rated Cooling Performance - Rated current (A)4.1(1.4~9.0)

Pressure - Low(SP) (MPa)1.9

Control typeRemote

Rated Heating Performance - Capacity (W)2635(600~2900)

Outdoor noise level (dB(A))52

Rated Cooling Performance - Capacity (Btu/h)9000(2050~9550)

TypeCooling and Heating, Inverter

Rated Heating Performance - Max current (A)9.0

Indoor unit - Packing(W*D*H) (mm)764×325×257

Refrigerant piping - Max. difference in level (m)10

Suitable area (m²)9~16

Rated Heating Performance - Capacity (Btu/h)9000(2050~9900)

Rated Heating Performance - Rated power Input (W)860(300~1200)

Compressor (Brand)Rechi

Rated Cooling Performance - Rated power Input (W)900(300~1300)
